Pitched roof insulation

U=0,15 W/(m2*K), Rt=6,5 (m2*K)/W

Insulation of a pitched roof consists in filling the voids between rafters with VestaEco CELL or VestaEco FIBRA wool. Then the rafters are covered with VestaEco ROOF rigid insulation boards. From the inside the rafters are covered with VestaEco V vapor barrier. The VestaEco pitched roof insulation system ensures very low thermal conductivity coefficient, elimination of cold bridges on rafters as well as protection against attic overheating in summer.

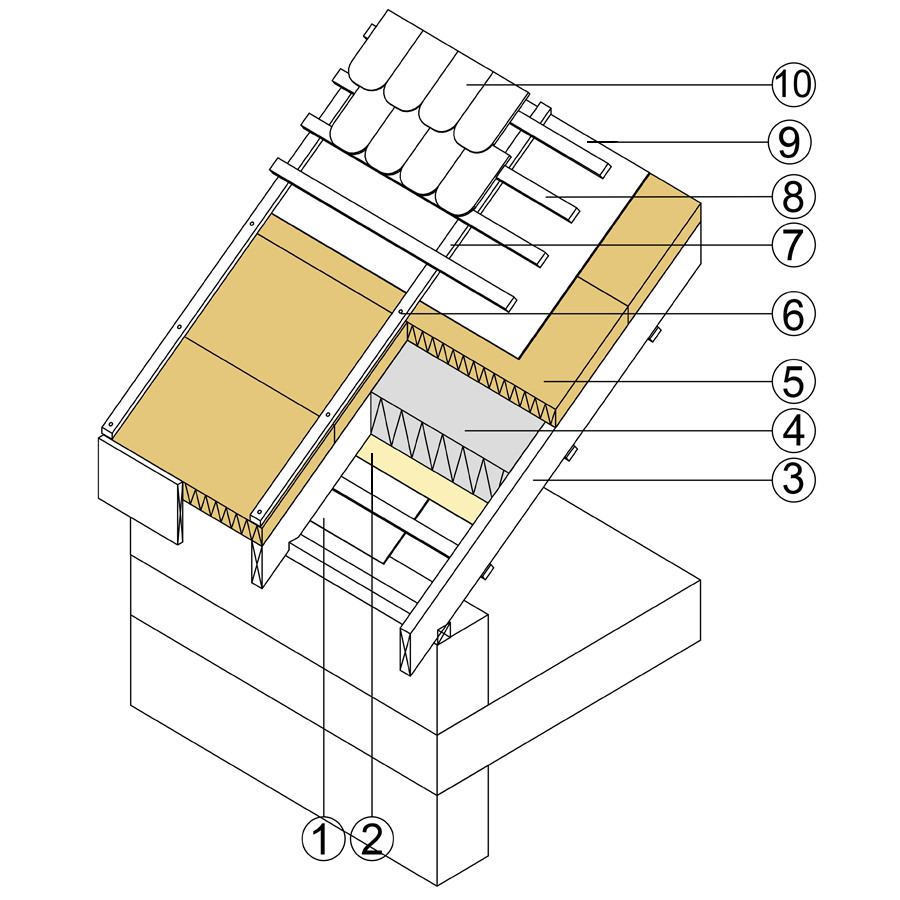

Layerbeschreibung:
  1. Fermacell board 12,5 mm on substructure
  2. VestaEco V vapor barrier
  3. Rafters
  4. VestaEco CELL / FIBRA 200 mm
  5. VestaEco ROOF 60 mm
  6. Wkrętmet WKCP carpentry screws
  7. Counter battens
  8. Battens
  9. Roof membrane Eurovent SUPERBLACK 170 g/m2
  10. Roofing
