Insulation of a ventilated timber frame wall

U=0,19 W/(m2*K), Rt=5,3 (m2*K)/W

Insulation of a ventilated timber frame wall consists in filling the voids between the frame studs with VestaEco CELL or VestaEco FIBRA wool and sheathing the wall with VestaEco PROTECT W rigid insulation board finished with a bitumen barrier. Vapor-permeable board facilitates the outflow of moisture through the ventilation cavity. Fixing of the boards to the frame studs should be made with building nails or staples.

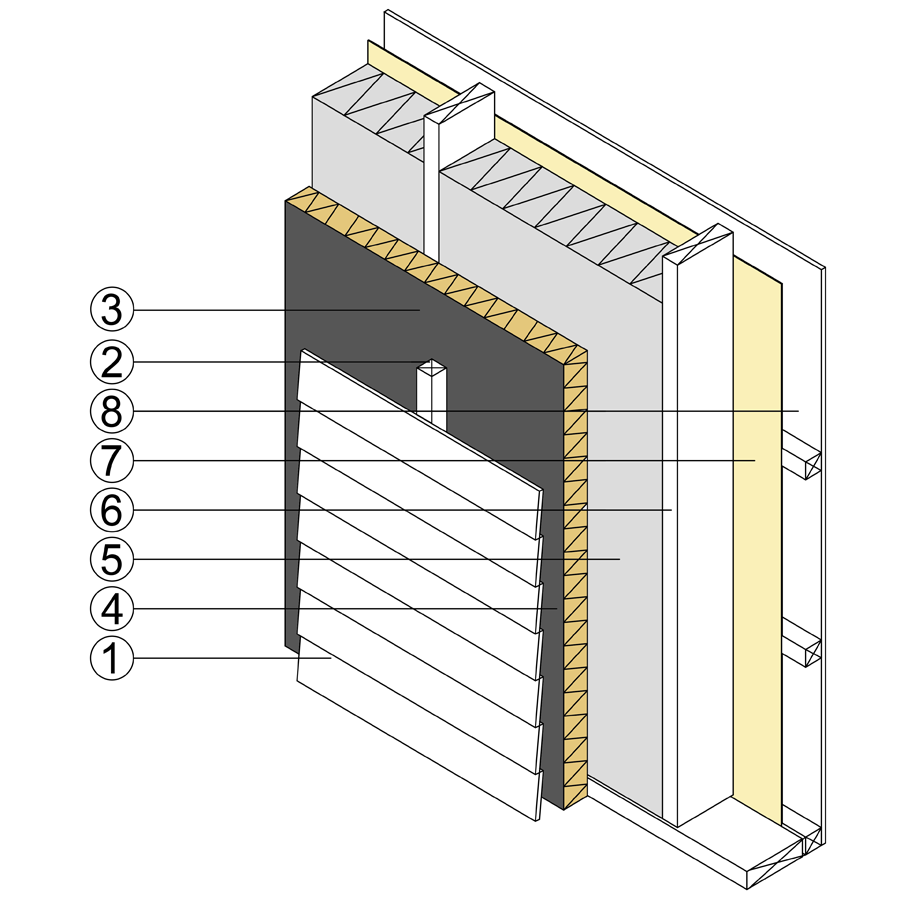

  1. Wooden cladding
  2. Timber battens
  3. Building nails or Prebena WP staples
  4. VestaEco PROTECT W 30 mm
  5. VestaEco CELL / FIBRA 180 mm
  6. Timber frame structure
  7. VestaEco V vapor barrier
  8. Fermacell board 12,5 mm
